XR510 Battery

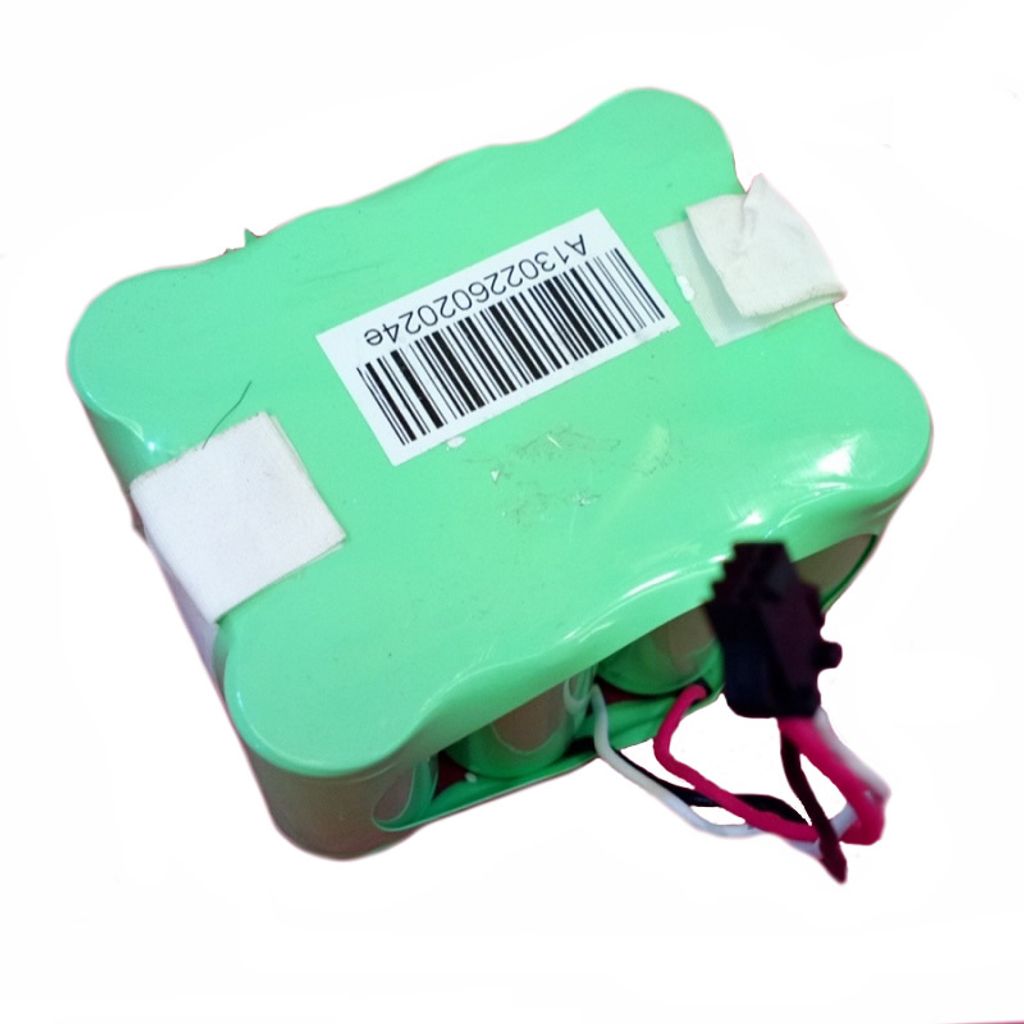

XR510 Series Rechargeable Battery

Compatible Models :

IROVA XR510A (Grey)

IROVA XR510B (Black)

IROVA XR510C (Green)

IROVA XR510D (Metallic Silver)

Warranty : (6) months warranty

What's Included :

1 x Rechargeable Battery

Installation Details :

1. Flip the machine over and with Phillips "+" screwdriver, remove the two screws of the battery cover.
2. Lift up the battery pack.
3. Gently apply pressure on the clip and wriggle the clip to separate it.
4. Install the new battery clip into the input wire clip.
5. Tuck the wire up properly and install the battery into position.
6. Install the cover and test for functionality.
7. Rechargeable battery requires 4 - 5 hours for 1st time charging.

How to care for your robot vacuum cleaner Rechargeable Battery?

• Never charge the robotic vacuum longer than required. Average charging time is around 4-5 hours.
• Never leave the robotic vacuum cleaner manually direct-charging overnight. Over-charging is detrimental to battery lifespan.
• Never leave the robotic vacuum cleaner without charge for extended periods of time (>1 month) This will cause the rechargeable battery to enter "slumber mode" and is detrimental to the battery life span.
• If you are not using the robotic vacuum cleaner for extended periods of time, remove the rechargeable battery from the machine.
